Meter

Scan capability overview

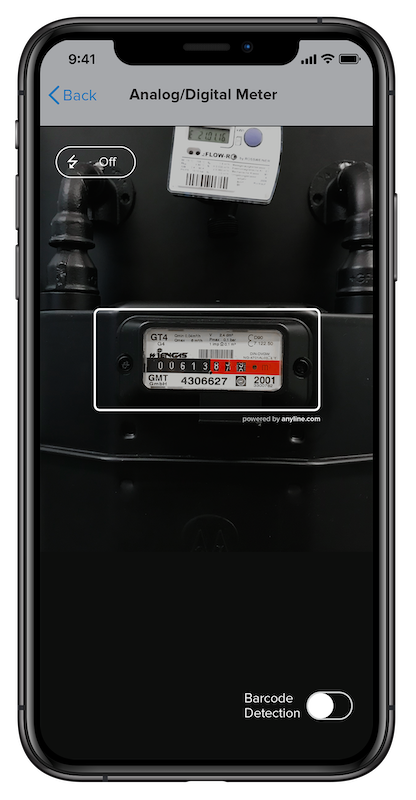

Example Meter

The Anyline Meter scanner reads analog electric, gas, and water meters. It also scans barcodes and QR codes for meter identification, as well as serial numbers. Digital 7-segment meters and heat meters are supported.

Auto Analog/Digital Meter

Automatically detects if the meter is an analog or digital meter.

Scans all types of analog meters (e.g. gas, electric, water meter) and automatically detects the number of digits before and after the decimal point, as well as 7-segment digital and dot matrix meters with at least 2 digits.

Dial Meter

Scans different types of dial meters supporting up to 1 decimal place (red dial).

Multi Field Digital Meter

This mode can be used to continuously scan Meters that show different values over time. It will also return the position (e.g. OBIS code).

Optimal view plugin settings

Ratio from size

Modifications to the following settings are not recommended and may cause issues with the scan accuracy.

Property Name Value

width

2.00

height

1.00

Plugin configuration and result

Plugin configuration

  • Find the PluginConfig parameters here.

Plugin result

  • Find the PluginResult parameters here.
