Tire Commercial ID

Scan capability overview

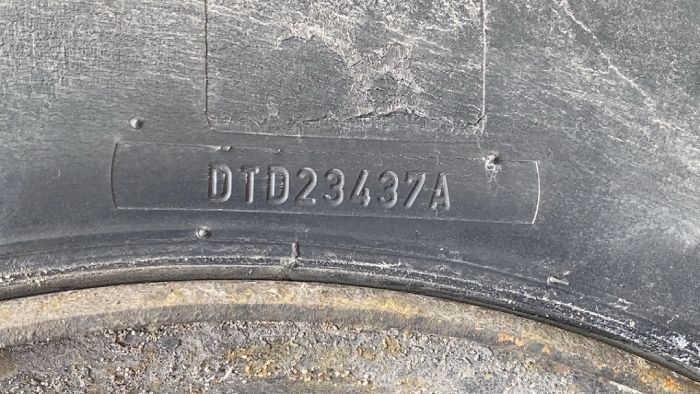

Example Tire Commercial ID

The Anyline scanner for Tire Commercial ID saves a lot of time and effort by reading and digitizing tire sidewall information in a fraction of a second.

The Tire Commercial ID is an alphanumeric identifier that can only be found on tires of trucks, buses and trailers.

Supported Formats

  • Allowed characters: 0-9, A-Z (excluding the letter O)

  • Scans straight written, single-line strings with a length from 7 to 14 characters

  • The string needs to follow this regular expression:

[0-9ABCDEFGHIJKLMNPQRSTUVWXYZ]{7,14}

  • Examples:

    • DKA001958

    • A7P367182

    • 1931783816

    • SUT06013R

    • DZN00579A

    • 6122700113

    • K21576342

    • 72152244

    • M9K205172

    • M2N181086

    • B2Q9V36

Limitations

  • Tire Commercial IDs printed on stickers have limited support

Optimal view plugin settings

Ratio from size

Modifications to the following settings are not recommended and may cause issues with the scan accuracy.

Property Name Value

width

5.00

height

1.00

Plugin configuration and result

Plugin configuration

  • Find the PluginConfig parameters here.

Plugin result

  • Find the PluginResult parameters here.
