Meter

Scan capability overview

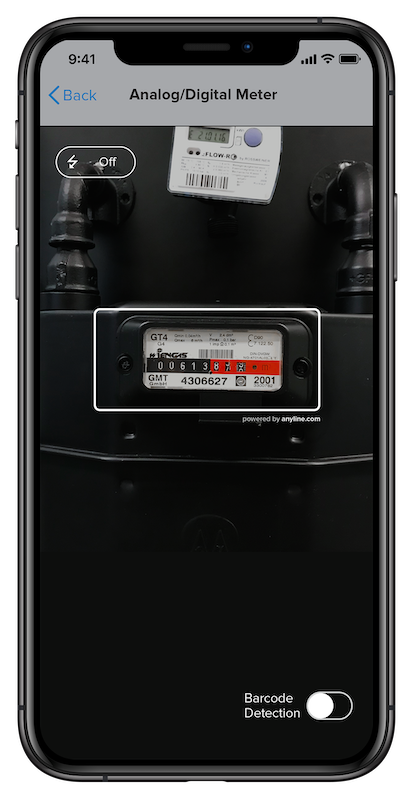

Example Meter

The Anyline Energy Plugin is capable of scanning Analog Electric-, Gas- and Water Meter readings. Common 7-segment Digital Meter can also be scanned.

Auto Analog/Digital Meter

Automatically detects if the meter is an analog or digital meter.

Scans all types of analog meters (e.g. gas, electric, water meter) and automatically detects the number of digits before and after the decimal point, as well as 7-segment digital and dot matrix meters with at least 2 digits.

Dial Meter

Scans different types of dial meters supporting up to 1 decimal place (red dial).

Dot Matrix

Scans dot matrix digital meters with clear digit displays.

Optimal view plugin settings

Ratio from size

Modifications to the following settings are not recommended and may cause issues with the scan accuracy.

Property Name Value

width

2.00

height

1.00

Plugin configuration and result

Plugin configuration

  • Find the PluginConfig parameters here.

Plugin result

  • Find the PluginResult parameters here.
