License Plate

Scan capability overview

Example License Plate

The License Plate Plugin can be used to scan license plates of different sizes and from different European countries and territories, the United States and Africa.

It includes license plate localization, perspective transformation and scanning of the license plate number - including possible country/territory information in an EU or similar badge.

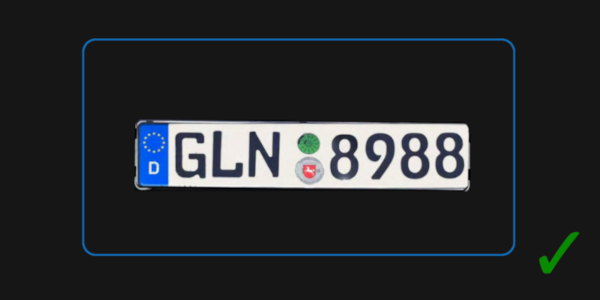

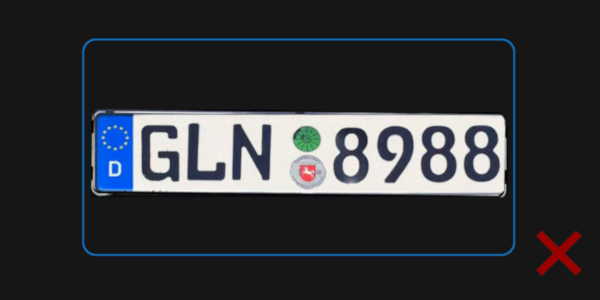

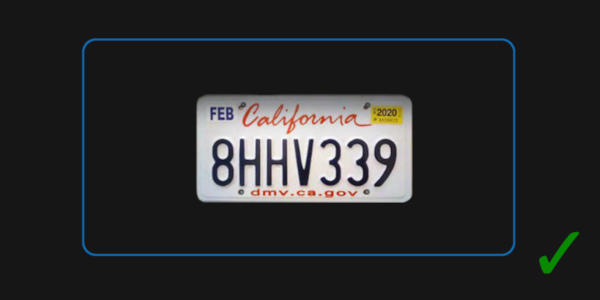

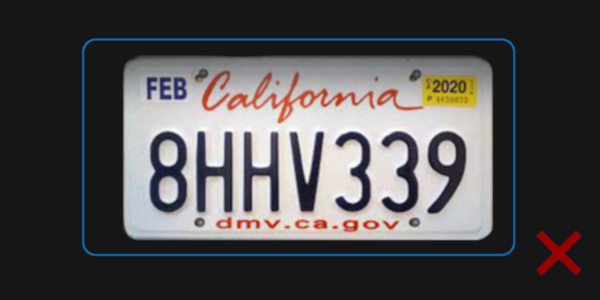

License plates need to be fully visible inside the cutout and angles of up to ~40° vertically and ~50° horizontally are possible for scanning.

Supported Countries/Territories

Europe

The following countries and territories are supported for automatic country detection provided that they use a blue euroband (additional support for Switzerland’s coat of arms and non-blue eurobands in Iceland, UK and Ukraine).

Country/Territory Code

Albania

AL

Austria

A

Belgium

B

Bosnia and Herzegovina

BIH

Bulgaria

BG

Croatia

HR

Cyprus

CY

Czech Republic

CZ

Denmark

DK

Estonia

EST

Faroe Islands

FO

Finland

FIN

France

F

Georgia

GE

Germany

D

Gibraltar

GBZ

Greece

GR

Hungary

H

Iceland

IS

Ireland

IRL

Italy

I

Kosovo

RKS

Latvia

LV

Lithuania

LT

Luxembourg

L

Malta

M

Moldova

MD

Montenegro

MNE

Netherlands

NL

North Macedonia

NMK

Norway

N

Poland

PL

Portugal

P

Romania

RO

Serbia

SRB

Slovakia

SK

Slovenia

SLO

Spain

E

Sweden

S

Switzerland

CH

Turkey

TR

Ukraine

UA

United Kingdom

UK

Supported Characters

European and African License Plates

0-9, A-Z, Ö, Ü, - and whitespace

US License Plates

0-9, A-Z, -, & and whitespace

Limited support for the character '&'.

Limitations

European License Plates

  • Limited support for small two-line license plates for light motorized vehicles such as mopeds

  • Limited support for special characters (Ö,Ü and Ä in German license plates are supported)

  • Limited support for non-standard mounted or bent license plates

  • Limited support for black license plates

  • Limited support for Hungarian and Danish Temporary License Plates

  • Limited support for country detection on blue multi row license plates (e.g. Austrian dealer plates).

  • Limited support for non-standard license plates

US License Plates

  • State detection is not reliable for vanity plates

  • Experimental support for the territories American Samoa, Guam and Puerto Rico

  • Stacked characters (one character above another) aren’t scanning correctly at the moment

  • Multi-line is currently not supported

Optimal view plugin settings

Ratio from size

Modifications to the following settings are not recommended and may cause issues with the scan accuracy.

Property Name Value

width

2.00

height

1.00

Plugin configuration and result

Plugin configuration

  • Find the PluginConfig parameters here.

Plugin result

  • Find the PluginResult parameters here.
